GARDE-CORPS S7
Classification ：
key word :
Grade-corps S7
PRODUCT DETAILS

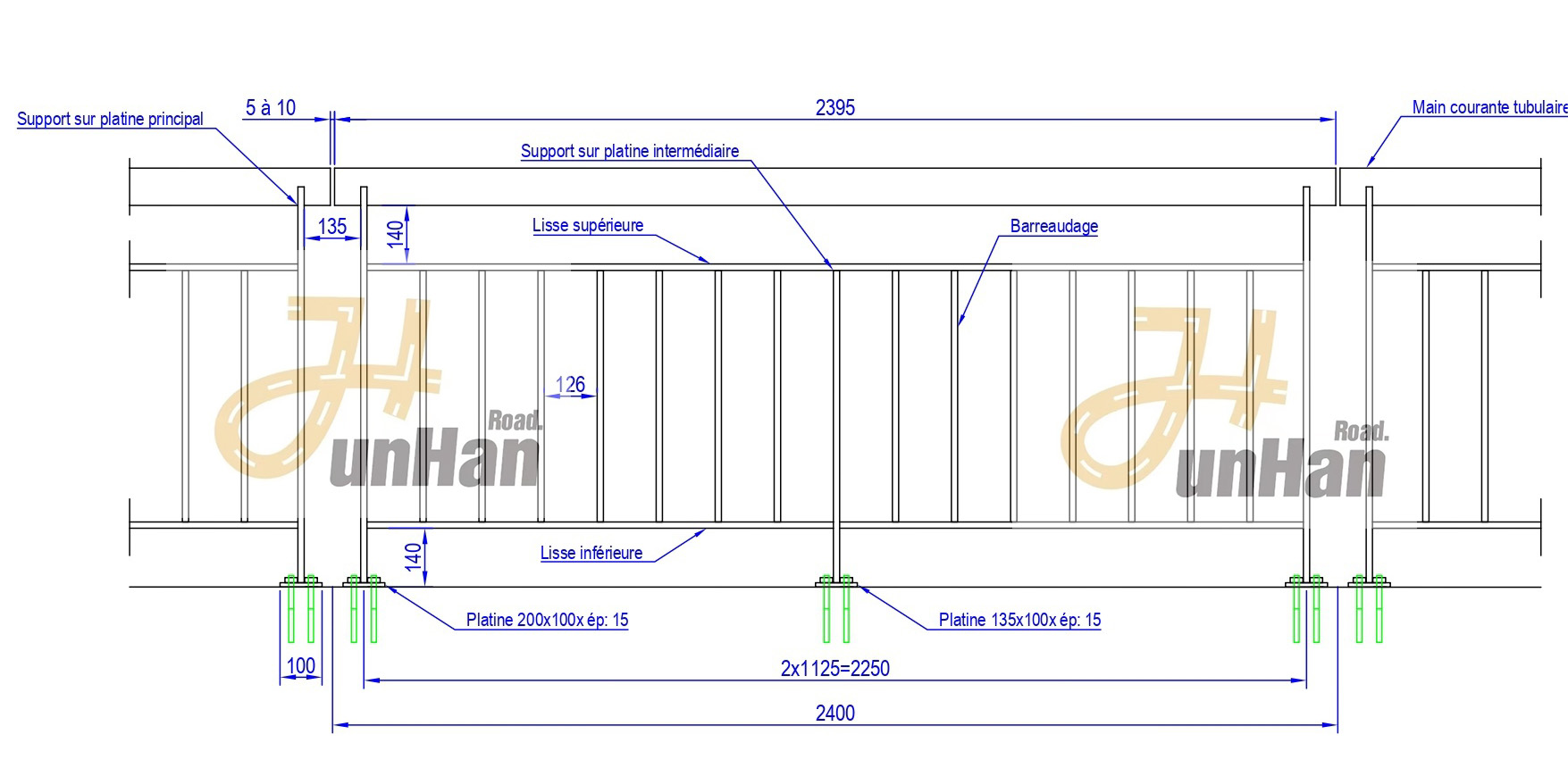

The S7 guardrail is a road guardrail with a round tubular handrail for works of art for sidewalk widths up to 4 meters.
The guardrail can be aesthetic in addition to protecting users from falls thanks to an adaptation of its design and its color. art. That is to say that it is installed on bridges, viaducts, stations, etc.
FEATURES
Compliant with standard: XP P 98-405
Common center distance: 2.50m
Protection: Galvanization according to NF EN ISO 1461 standards
Height: 1000 mm
Weight: 34 kg/lm
Guarantee: 10 years anti-corrosive guarantee (hot-dip galvanization)
Post spacing available: 2200 mm to 2500 mm
Posts: sealed posts or welded posts on base plate, on a concrete sill or sidewalk.
The S7 guardrail is a restraint device that has several advantages:
These are products suitable for the curves and slopes of structures
The assembly is done by shrunk or welded sleeves
It is a product that is easily repairable
Finally, we find a continuity of customization with thermo lacquering
Design may vary from architectural specifications
It is guaranteed anti-corrosion for 10 years
