Bridge guardrail BN4 （BN4 safety barrier）

The BN4 restraint system has been approved for level H2 in the NF standard. That is to say, the restraint system is capable of restraining a light vehicle (with an average mass of 900 kg) at an impact speed of 100 km/h.

Classification ：

Bridge guardrail

key word :

Bridge guardrail BN4

+86 18653619699

unhanroad@unhanroad.com

E-mail

Related Products

Online Message

PRODUCT DETAILS

Product name	BN4-16T
Normal Size	Height: 1000mm Weight: 70kg/m Minimum device length: 20 m Post center distance: 2.3-2.5 m
Applicable standards	Level H2 in NF P 98-421
Base steel:	S235 or E420
Surface treatment	Polyester spraying after hot-dip galvanizing，Optional polyester spraying (Raul color card)
The thickness of galvanized (double sides)	600g/m2 (85µ)

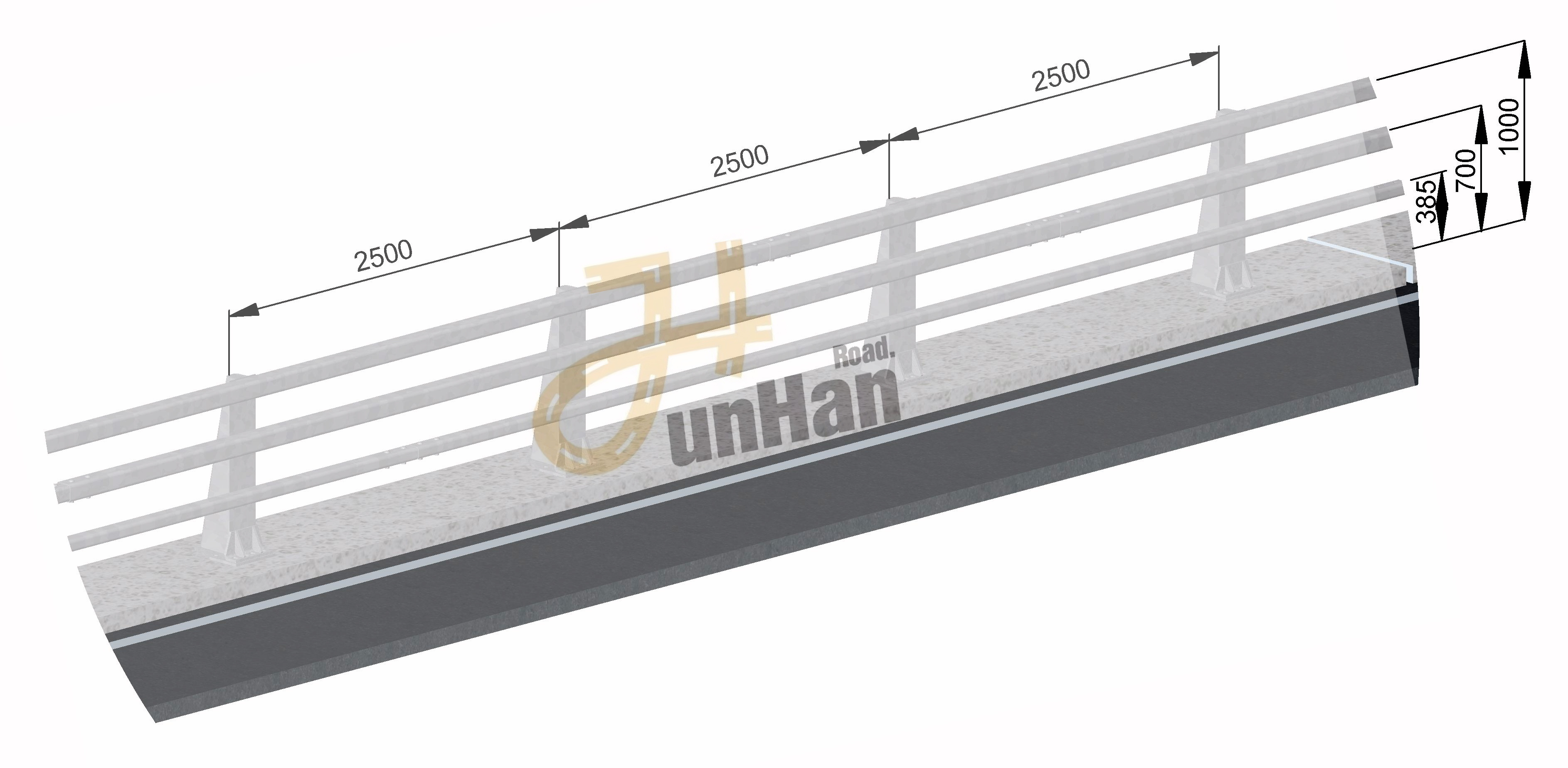

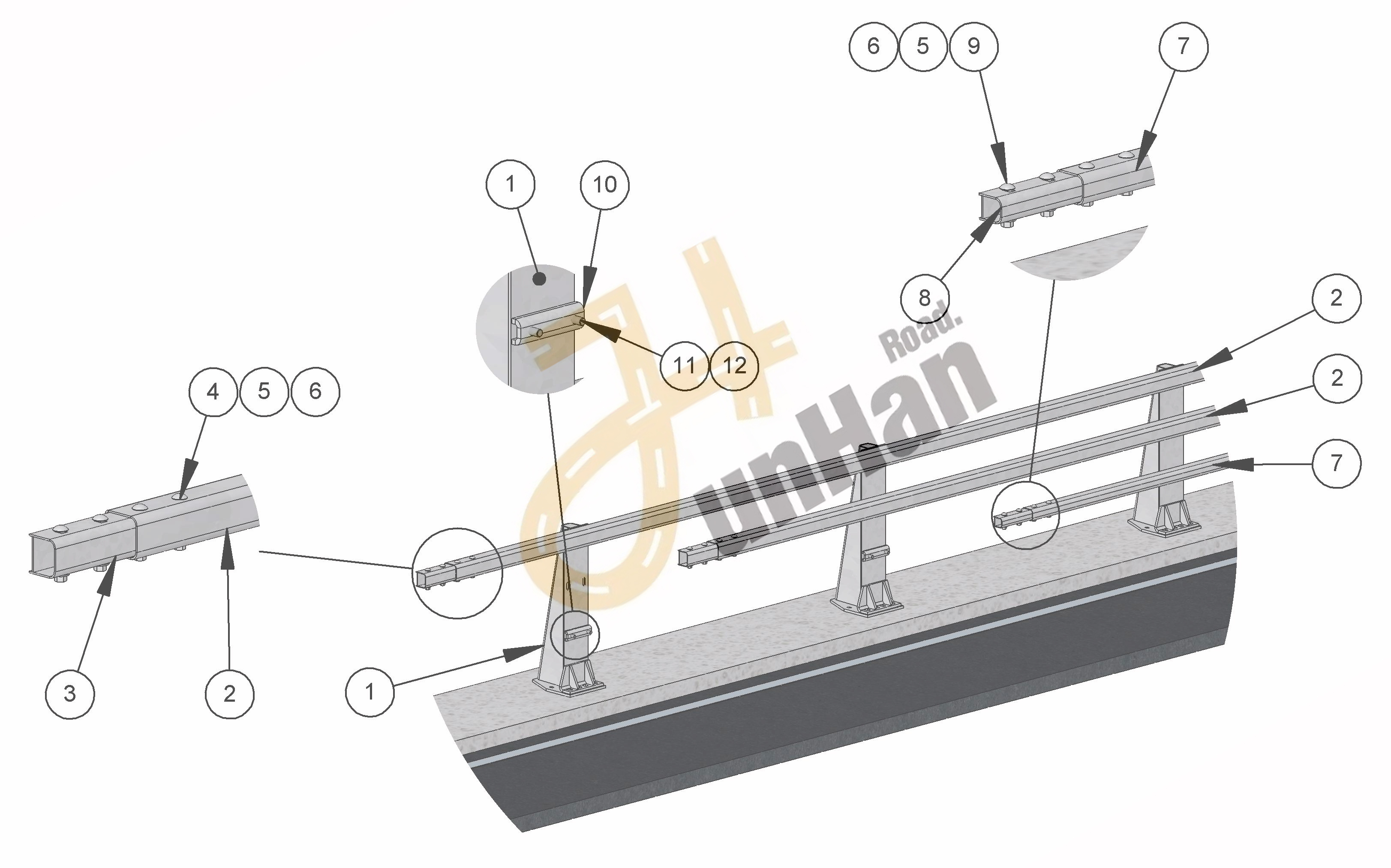

Specification Drawing of BN4 safety barrier

Anchoring: socket anchors embedded in the concrete of the engineering structure with load distributor or type P anchors
Supports: concrete sidewalk sill with height from the ground >15 cm
The BN4 restraint system has been approved for level H2 in the NF standard. That is to say, the restraint system is capable of restraining a light vehicle (with an average mass of 900 kg) at an impact speed of 100 km/h. Also, heavier bus-type vehicles (with an average mass of 13,000 kg or 13 tonnes) at an impact speed of 70 km/h. The tests that accredit this type of barrier are the TB11 type tests for the restraint of light vehicles. TB51 applies to restraint systems for heavier vehicles such as buses. BN4 safety barriers for restraining light vehicles (900 kg to 13 tons) have a high angle restraint level: the angle of impact is 20 degrees.
